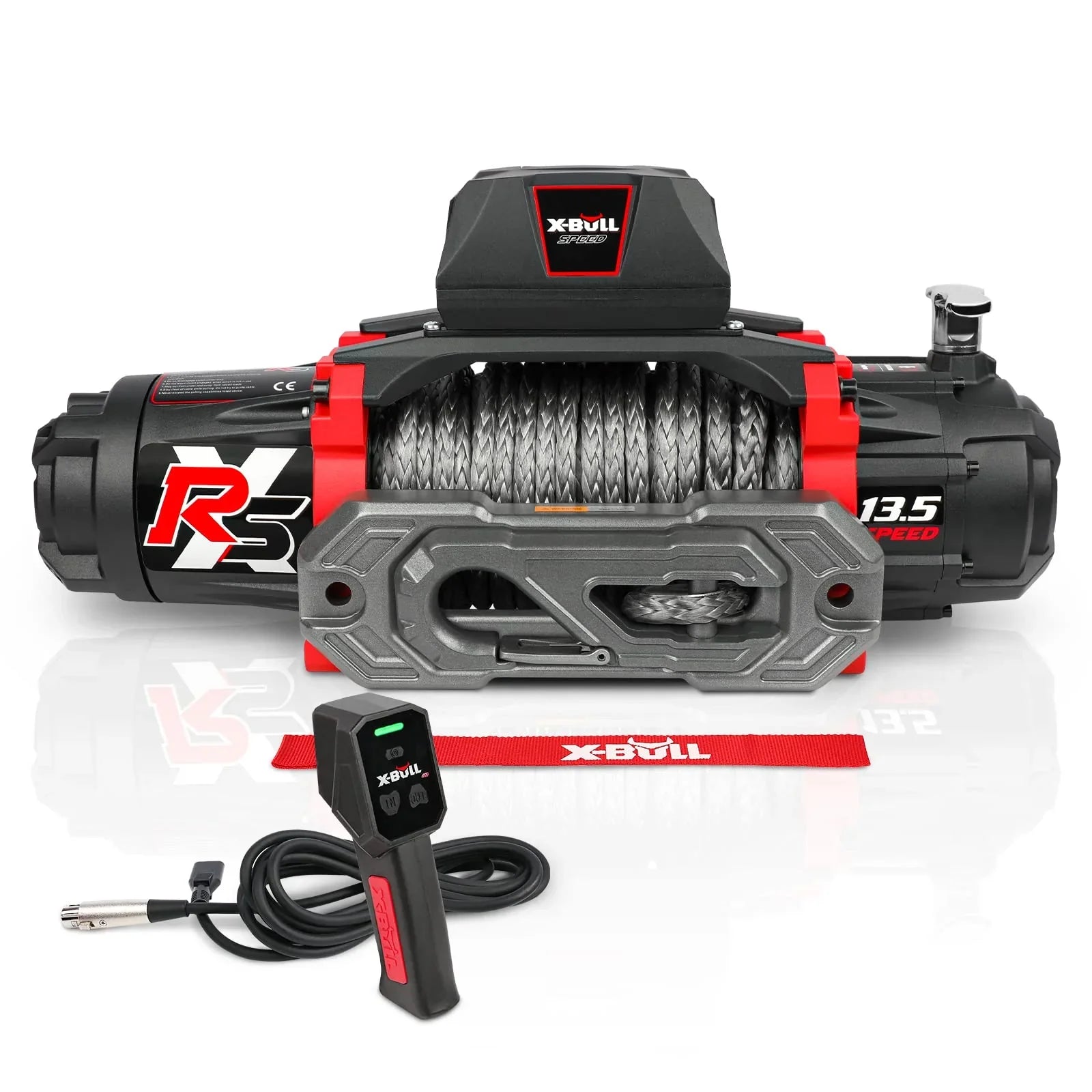

13500 lb Load Capacity Electric Winch for Towing Truck Off Road

Features:

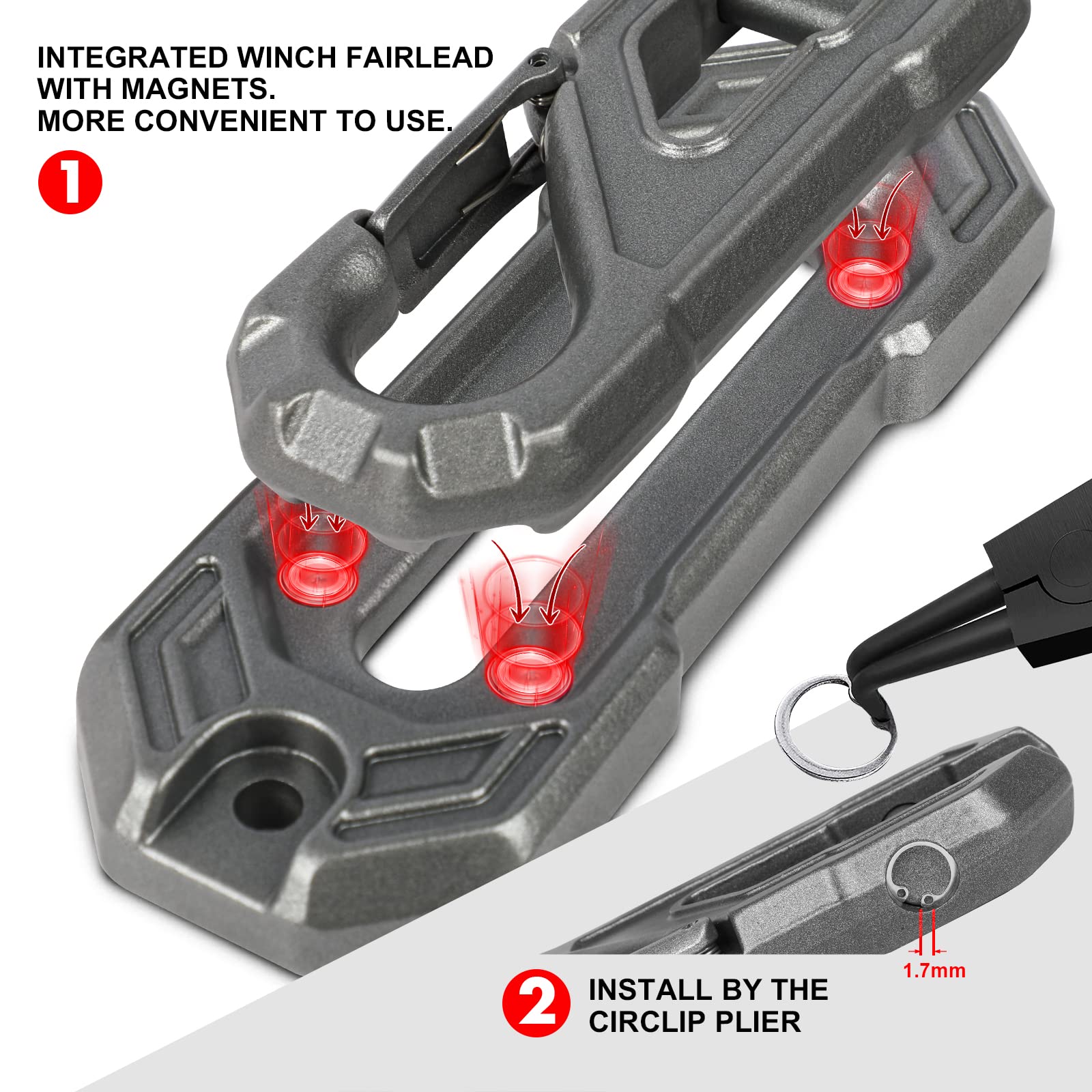

• [High Quality Aerospace Aluminum Fairlead] This fairlead, made of high-grade aircraft aluminum, provides optimal performance for all your recovery requirements. It boasts a working load limit of 20,000 pounds. The new design makes it easier for the gearbox's heat to be dissipated, ensuring that the winch can operate for a longer period.
• [Strong and Lightweight] The synthetic rope is lightweight but strong, and it is suited for all types of harsh environments due to its high resistance to bending, abrasion, and weather.
• [IP66 Waterproof] It has a new generation of wireless remote control, with an IP66 waterproof rating, that can operate accurately from a distance regardless of geography or weather. The wired and wireless control (up to 35m) are both included in this multipurpose controller.
• [3-Stage Planetary Gear System] With the latest and effective 3-stage planetary gear system, free spooling clutch, and ability to provide strong traction under load and higher linear speed, it will become an indispensable partner in your journey.
• [Installation] Before using the winch, please carefully read the instructions (Installation instructions are on the page details). A mounting bracket that is not included with this product must be set up in order to install the winch and fairlead. Use the snatch block to make your work easier. Another safety advice is to throw a blanket over the wires to lessen the whiplash if something breaks loose. In case you have any questions, do contact us, we are happy to help.

INSTRUCTION：

To pull out the rope, move the clutch handle to the released position.

Re-engage the clutch by moving the clutch handle to the engaged position.

To pull out the rope, move the clutch handle to the released position, slide the loop of the hook strap over the hook, then pull on the hook strap to pull out the rope.

TIPS：

Leave at least five full turns of wire rope on the drum.To pull out the rope, move the clutch handle to the released position, slide the loop of the hook strap over the hook,then pull on the hook to pull out the rope.

If the winch is overloaded, the steel shell can protectthe winch body well. Black frosted paint will not rust.

DUTY CYCLE

Avoid damage to the Winch by not winching for more than the prescribed duty cycle time.

The Duty Cycle defines the amount of time,within a 15minute period,during winch a Winch can operate at its maximum capacity without overheating.

60 seconds constant winching, followed by 10 minutes cool down, 60 seconds constant winching, 10 minutes cool down. We repeated this process until each winch had pulled as close to 20 metres as possible.
